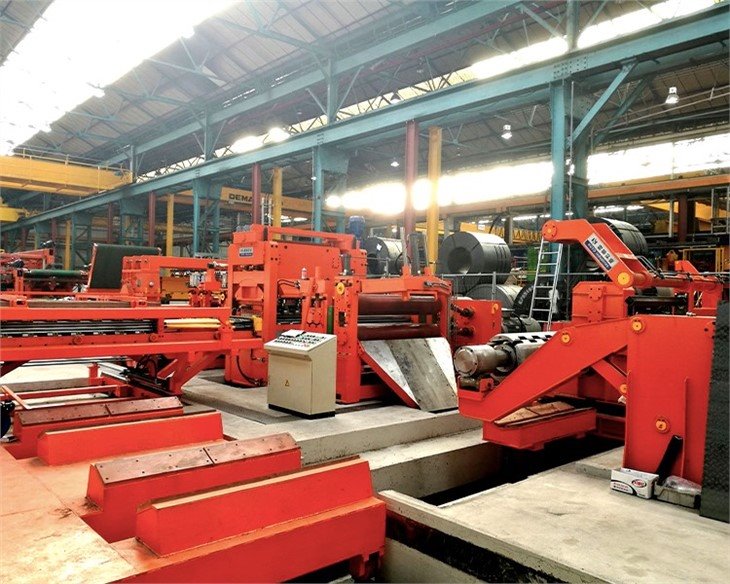

Rotary Shear Kab
HOYO Rotary Shear Lines suav nrog cov thev naus laus zis thev naus laus zis kom ntseeg tau qib siab tshaj plaws ntawm kev sib xws kom tau raws li qhov xav tau ntawm qhov chaw ua haujlwm niaj hnub no. Rotary Shear Lines xav kom Uncoil, Leveling thiab Nruam Hla Txiav Hlau Sawb raws li qhov ntev thiab tsim nyog Stacking cov nplooj ntawv; cov...
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Khoom Taw qhia
HOYO Rotary Shear Lines suav nrog cov thev naus laus zis thev naus laus zis kom ntseeg tau qib siab tshaj plaws ntawm kev sib xws kom tau raws li qhov xav tau ntawm qhov chaw ua haujlwm niaj hnub no.
Rotary Shear Lines xav kom Uncoil, Leveling thiab Nruam Hla Txiav Hlau Sawb raws li qhov ntev thiab tsim nyog Stacking cov nplooj ntawv; Cov haujlwm no tau ua tiav los ntawm peb cov tshuab uas tau tsim los tiv thaiv ntau yam khoom siv zoo nkauj xws li thinner - softer aluminium mus rau thicker - tougher stainless thiab siab zog carbon steel.
Txhua lub cev lub cev tau ntsib nrog kev ua tiav los ntawm HOYO; tsuas yog hais txog qhov kawg:
· Khoom thickness xws li {{0}}, 1 hli mus rau 4.0 hli.
· Qhov siab tshaj plaws strip dav 1850 mm
· Daim ntawv ntev tshaj plaws 8000 mm
· Tensile zog 1200 N / mm2
Lwm cov haujlwm tau ua tiav raws li cov neeg siv khoom xav tau xws li Edge Trimming, Balling lossis Chopping ntawm seem npoo ntawm sawb, Ntawv thiab Yas Zaj duab xis interleaving thiab ntau ntxiv. Peb Rotary shear kab yog tsim los teb cov kev xav tau siab tshaj plaws hauv kev ua tau zoo thiab cov khoom tsim tawm nrog kev saib xyuas kom muaj kev nyab xeeb rau cov neeg ua haujlwm thiab kev saib xyuas yooj yim.
Main specifications:
qauv | 800W | 950W | 1350W | 1650W | 1850W |
Ntshuam cov ntaub ntawv | Cold-dov carbon steel coil, xim-coated steel, galvanized steel, stainless hlau, txhuas, tooj liab | ||||
Thickness ntau | {0}}3-2.0mm | 0 5-2.5 hli | {0}}5-3.0mm | {0}}5-3.0mm | {0}}5-3.0mm |
Dav dav | 800mm (Max.) | 950mm (max.) | 1350mm (Max.) | 1650mm (Max.) | 1850mm (Max.) |
Coil hnyav | 10 Tons (Max.) | 15 Tons (Max.) | 20 Tons (Max.) | 25Tons (Max.) | 25 Tons (Max.) |
Txiav precision | ± 0.3 hli | ± 0.3 hli | ± 0.5 hli | ± 0.5 hli | ± 0.5 hli |
Unit ceev | 80m / min (Max.) | 80m / min (Max.) | 80m / min (Max.) | 80m / min (Max.) | 80m / min (Max.) |
Cim npe nrov: rotary shear kab
