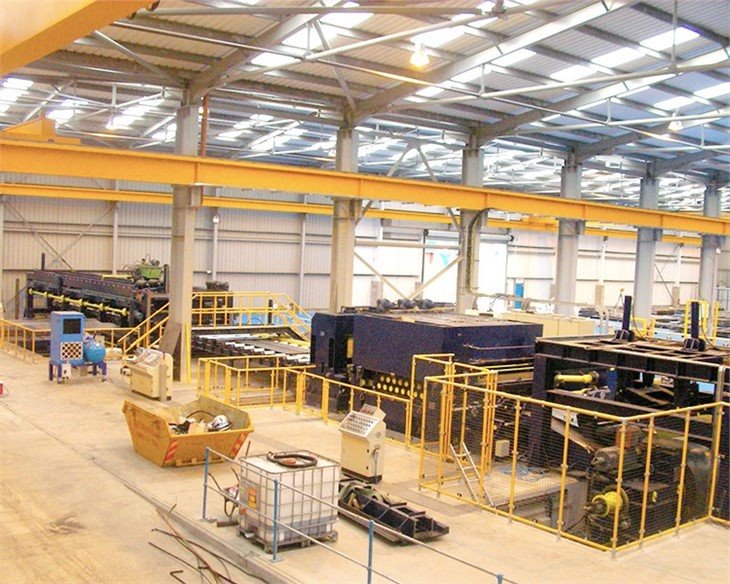

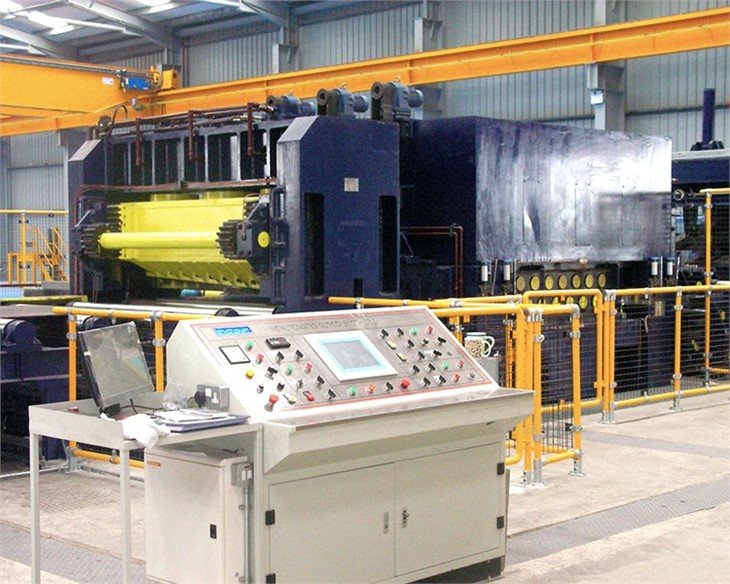

Kub Rolling Nres Txiav Kab
HOYO Heavy Gauge Txiav rau Length Lines suav nrog cov thev naus laus zis tswj tshiab kom ntseeg tau qib siab tshaj plaws ntawm kev sib luag kom tau raws li qhov xav tau ntawm qhov chaw ua haujlwm niaj hnub no. Qhov hnyav ntsuas CTL kab yog xav kom Uncoil, Leveling thiab Hla Txiav thickness hlau sawb raws li qhov ntev thiab tsim nyog Stacking ...
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Khoom Taw qhia
HOYO Heavy Gauge Txiav rau Length Lines suav nrog cov thev naus laus zis tswj tshiab kom ntseeg tau qib siab tshaj plaws ntawm kev sib luag kom tau raws li qhov xav tau ntawm qhov chaw ua haujlwm niaj hnub no.
Qhov hnyav ntsuas CTL kab yog xav kom Uncoil, Leveling thiab Hla Txiav thickness hlau sawb raws li qhov ntev thiab tsim nyog Stacking cov nplooj ntawv; Cov haujlwm no tau ua tiav los ntawm peb cov tshuab uas tau tsim los tiv thaiv ntau yam khoom siv zoo xws li los ntawm cov pa roj carbon ib txwm mus rau cov tuab tuab - tawv tawv thiab siab zog carbon steel.
Txhua lub cev lub cev tau ntsib nrog kev ua tiav los ntawm HOYO; tsuas yog hais txog qhov kawg:
· Khoom thickness xws li 0, 1 hli mus rau 25 hli.
· Qhov siab tshaj plaws strip dav 2500 mm
· Daim ntawv ntev tshaj plaws 18000 mm
Lub zog tensile 1200 N / mm2
Lwm cov haujlwm tau ua tiav raws li cov neeg siv khoom xav tau xws li Edge Trimming, Balling lossis Chopping ntawm seem npoo ntawm sawb, Ntawv thiab Yas Zaj duab xis interleaving thiab ntau ntxiv. Peb CTL yog tsim los teb cov kev xav tau siab tshaj plaws hauv kev ua tau zoo thiab cov khoom tsim tawm nrog kev saib xyuas kev nyab xeeb rau cov neeg ua haujlwm thiab kev saib xyuas yooj yim.
Main specifications:
qauv | 1650W | 1850W | 2000W | 2200W |
Ntshuam cov ntaub ntawv | Kub dov phaj, kub dov pickled phaj, kub dov stainless hlau phaj, thiab lwm yam. | |||
Thickness ntau | 1. 2-6 0mm | 3. 0-12 0mm | 5. 0-20 0mm | 8. 0-25 0mm |
Dav dav | 1650mm (Max.) | 1850mm (Max.) | 2000mm (Max.) | 2200mm (Max.) |
Coil hnyav | 30Tons (Max.) | 30 Tons (Max.) | 30 Tons (Max.) | 35Tons (Max.) |
Txiav precision | ± 0.8 hli | ± 1.5 hli | ± 1.8 hli | ± 2 0 hli |
Unit ceev | 60m / min (Max.) | 40m / min (Max.) | 30m / min (Max.) | 25m / min (Max.) |
